ELEKTRA M

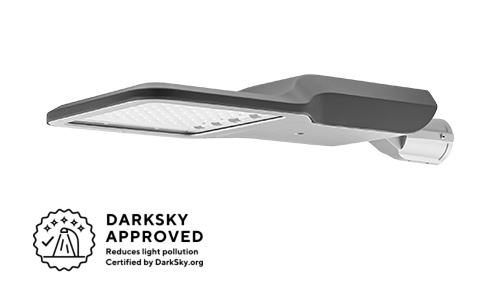

Modern LED luminary for public lighting systems with ± 20° adjustable joint, able to integrate two Zhaga-D4i connectors from bottom and top part of the luminary.

Optional colour according to the RAL colour chart

POPTAT ŘEŠENÍ

ELEKTRA M

Specifications

Electrical parameters

Light source	LED
Power voltage	AC 220–240 V / 50–60 Hz
Connection method	leading out cable, leading out cable with connector (G), without cable (WO)
Ballast part	electronic driver with surge protection L/N-Ground 10 kV
Surge protection	additional surge protection 10 kV (S)
Fuse	fuse 6,3 A (J)
Possibility of regulation	non-dimmable (not labeled), DALI (DALI), night dimming (A) preparation for wireless communication NEMA (N), Zhaga (Z) or 2× Zhaga (Z2)
Constant lumen output	CLO (C)

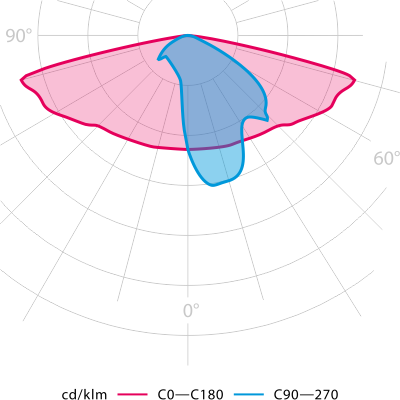

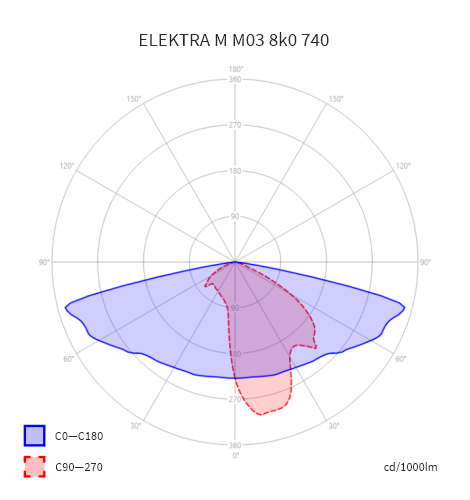

Light parameters

Optical system	roads (Mxx), roads (Lxx), directional (Pxx) area (Uxx), pedastrian crossing (ZLx/ZPx), combined optics (Kxx), BACK Light clonky (BL1/BL2) » FRONT Light clonky (FL1/FL2)
Light distribution	direct
Colour rendering index	Ra > 70
Colour temperature	BLUE FREE (AMBER), 2,700 K / 3,000 K / 4,000 K / 5,000 K / 5 700 / TW
Service life	> 120,000 hrs. (L90)

Construction

Luminaire body	aluminum cast
Colour	RAL 7015/9006, other RAL (on request)
Surface type	matte
Luminaire cover	tempered glass

Safety

Protection class	I, II
Maximum ambient temperature	-40 / 55 °C
Ingress protection	IP 66
Impact protection	IK 09, IK 10
EMC	YES
Vibration test	YES
Wind force test	YES
Corrosion test – Salty spray	YES(1,500 hours)
Life test	YES
Certification	ENEC, ENEC+, Zhaga-D4i, IDA Dark Sky Approved
CB mark	YES
RoHS	YES
REACH	YES

Mounting

Method	pole or boom mounted (48–60 mm); 60–76 mm (on request) adjustable joint ± 20°
Recommended height	max. up to 12 m
Additional equiptment	external shades (CPZ) - on order
Use	outdoor areas; road classes I., II. and III.

Variants

Luminaire ambient temperature TQ 25 °C,
Initial color consistency: ≤ 5 SDCM.
Optical and electrical parameters tolerance ± 10 %.
IDA Dark Sky fixture seal of approval relates to ≤ 3 000 K
To meet IDA requirements, the luminaires must be installed horizontally with the road

When using the CLO function, the initial power and luminous ﬂux
is 10 % lower than the value shown in the table. LDT curves with
CLO function have the letter “C” at the end of their marking.

The term BLUE FREE (AMBER) in lighting technology refers to light with a minimum amount of the blue part of the light spectrum (< 2%).
