Specifications
Electrical parameters
| Light source | LED |
| Power voltage | AC 220–240 V / 50–60 Hz |
| Connection method | leading out cable, leading out cable with connector (G) |
| Ballast part | electronic driver with surge protection L/N-Ground 10 kV |
| Surge protection | additional surge protection 10 kV (S) |
| Fuse | fuse 6,3 A (J) |
| Possibility of regulation | non-dimmable (not labeled), DALI (max. 3 care cable), night dimming (A) preparation for wireless communication NEMA (N), Zhaga (Z) |
| Constant lumen output | CLO (C) |

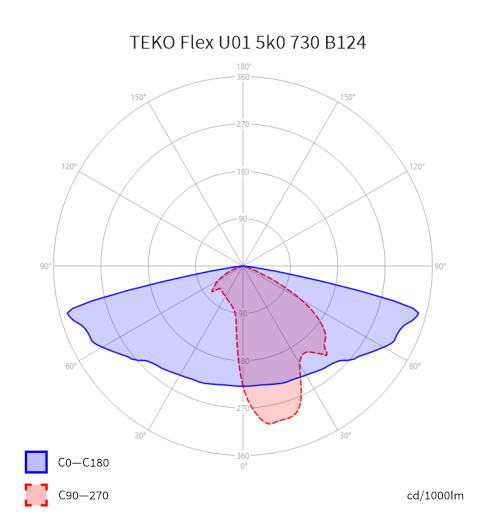

Light parameters
| Optical system | roads (Mxx), roads (Lxx), directional (Pxx) area (Uxx), combined optics (Kxx), BACK Light shades (BL1) FRONT Light shades (FL1) |

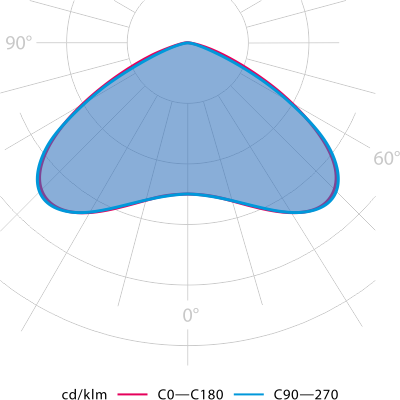

| Light distribution | direct |
| Colour rendering index | Ra > 70, Ra > 80 |
| Colour temperature |
BLUE FREE (AMBER) / 2,200 K / 2,700 K / 3,000 K / 4,000 K / 5,000 K / |
| Service life | > 120 000 hrs. (L90) |

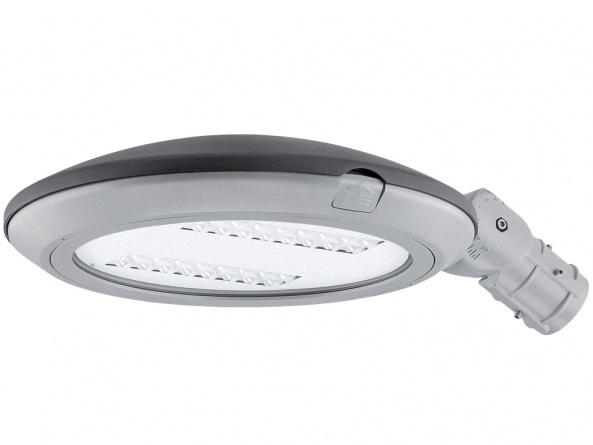

Construction
| Luminaire body | aluminum cast |

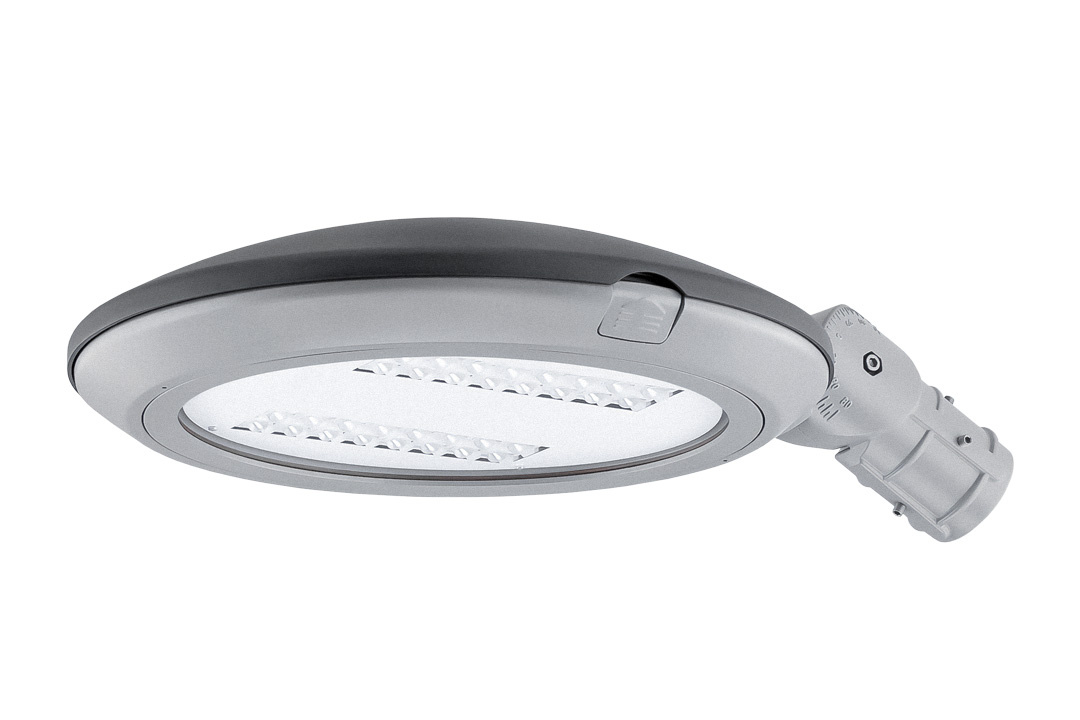

| Colour | RAL 7015/9006, other RAL (on request) |
| Surface type | matte |
| Luminaire cover | tempered glass |
Safety
| Protection class | I, II |
| Maximum ambient temperature | -40 / 55 °C |
| Ingress protection | IP 66 |
| Impact protection | IK 09 |
| EMC | YES |
| Vibration test | YES |
| Static load test | YES |
| Corrosion test – Salty spray | YES (1500 hours) |
| Lifetime test | YES |

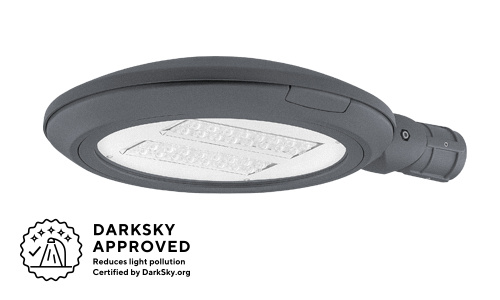

| Certification | ENEC+, ENEC, Zhaga-D4i , IDA Dark Sky ApprovedMounting |
| CB mark | YES |
| RoHS | YES |
| REACH | YES |

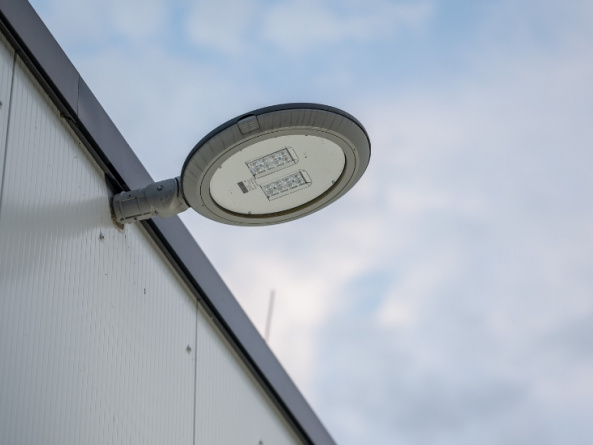

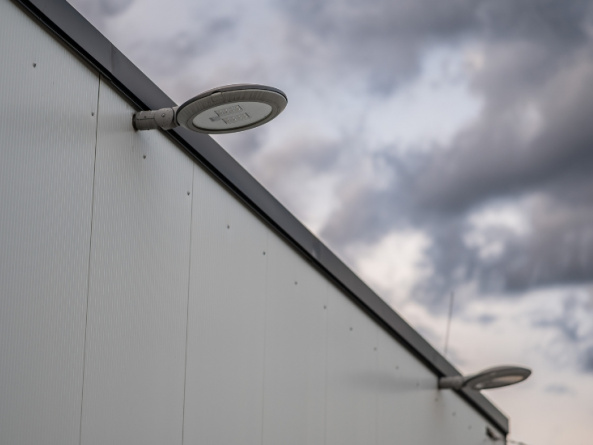

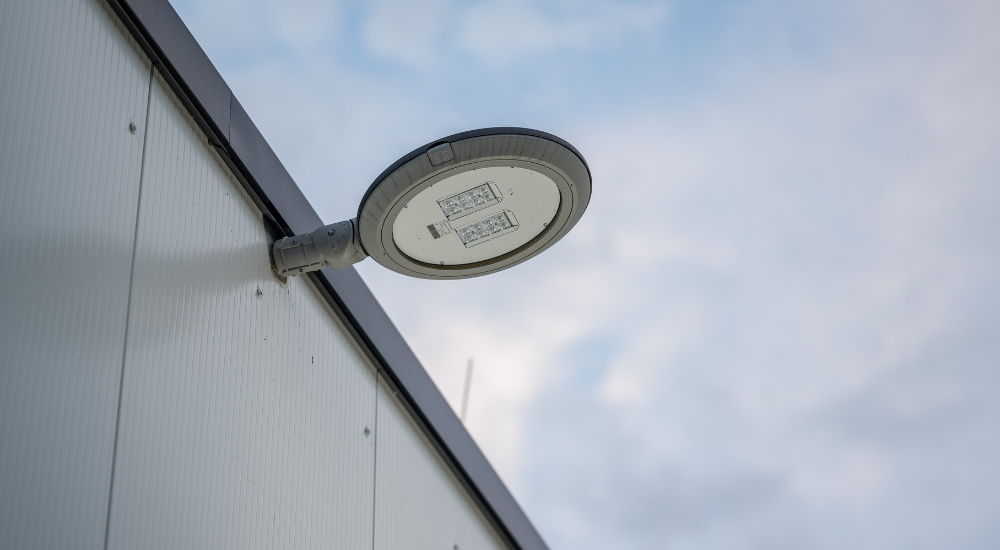

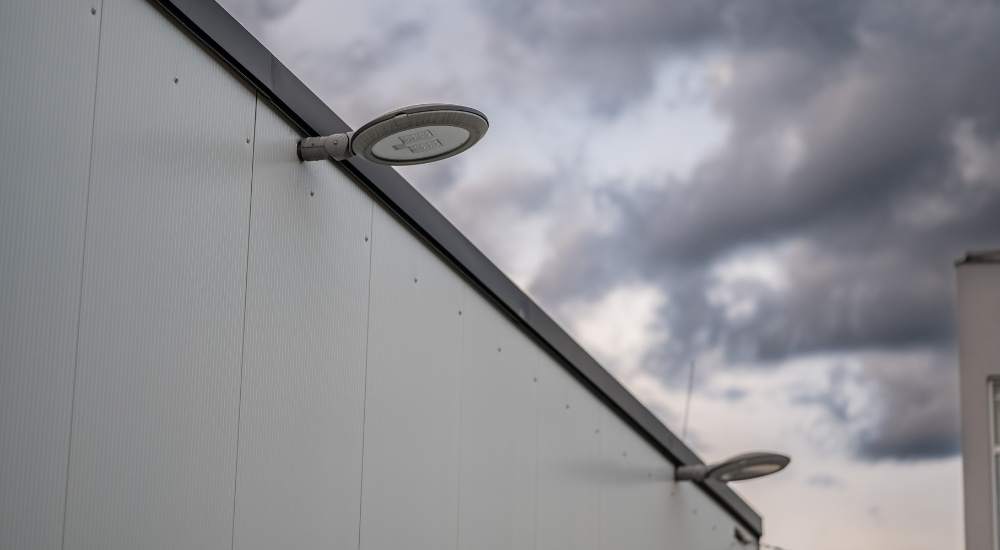

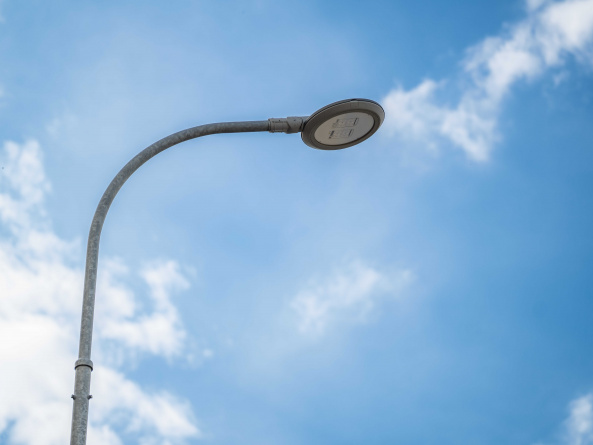

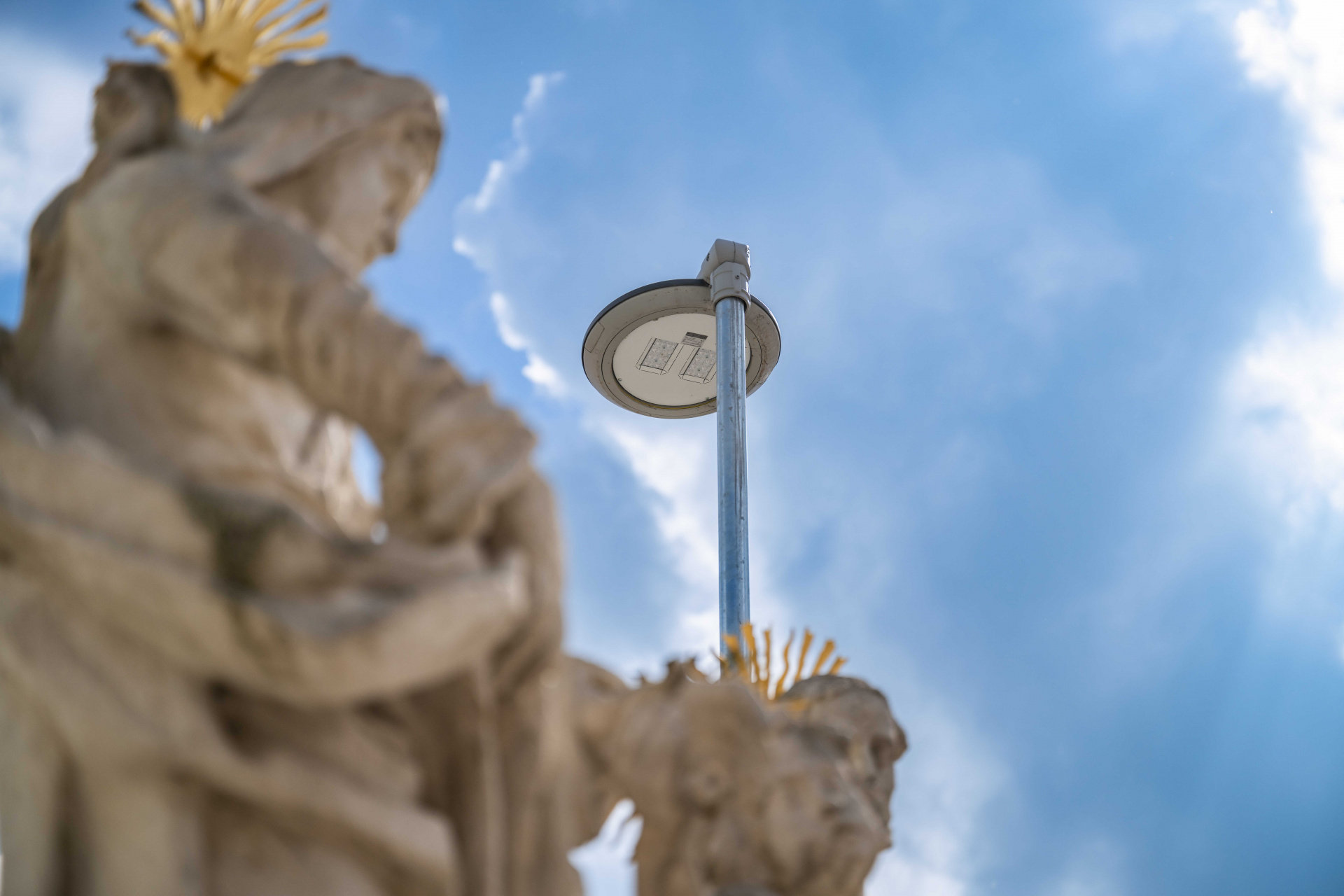

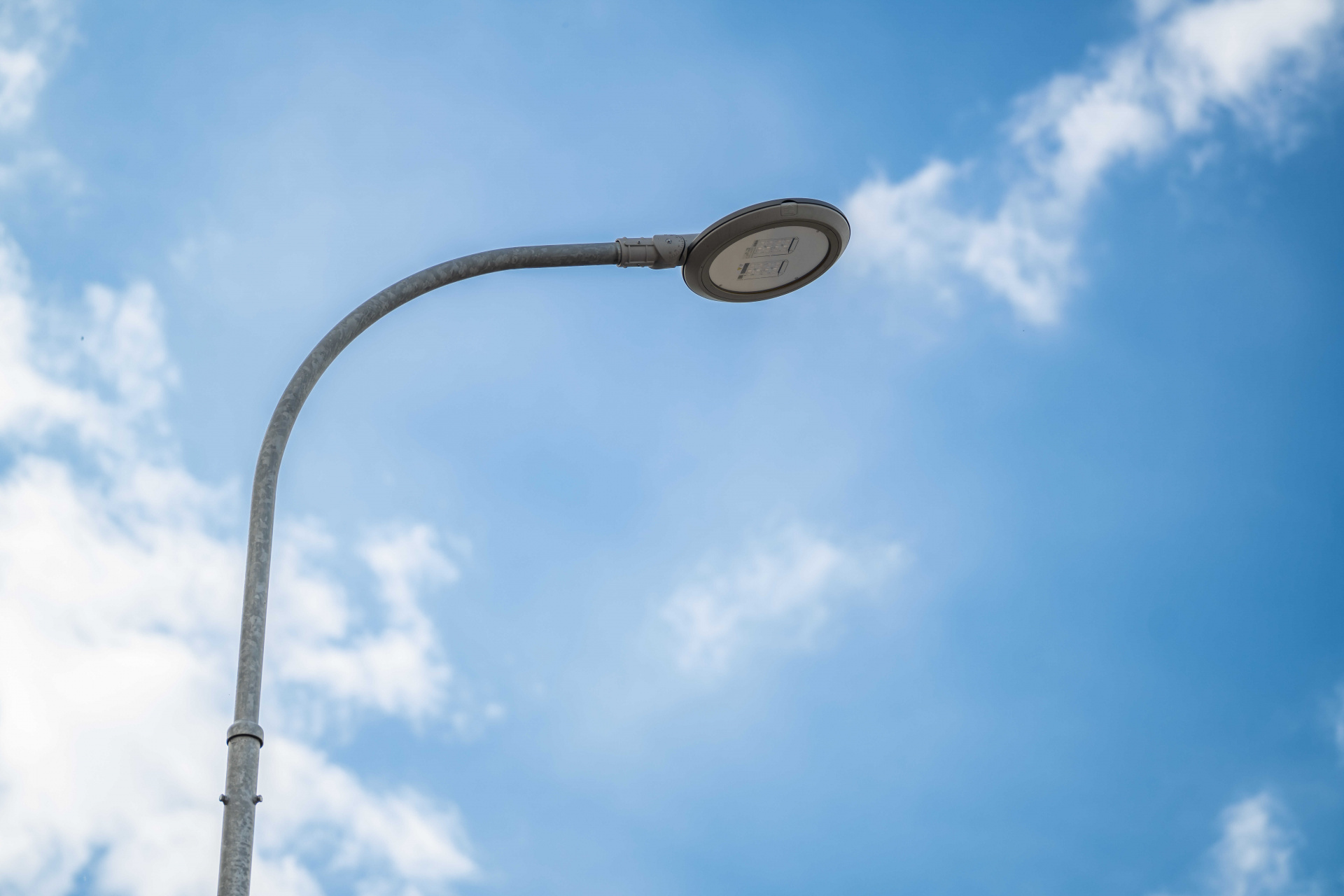

| Method | pole or boom mounted (48–60 mm) |
| Recommended height | max. up to 12 m |
| adjustable joint +/- 90° | |
| Use | bike path, outdoor areas, pedestrian zones, square, sidewalks |
Luminaire ambient temperature TQ 25 °C
Datasheet
Eulumdata
