Specifications
Electrical parameters
| Light source | LED |
| Power voltage | AC 230 V / 50 Hz |
| Connection method | leading out cable, leading out cable with connector (G), without cable (WO) |
| Ballast part | electronic driver with surge protection L/N-Ground 10 kV |
| Surge protection | additional surge protection 10 kV (S) |
| Fuse | fuse 6,3 A (J) |
| Possibility of regulation | without regulation (not labeled), DALI (DALI), night dimming (A) preparation for wireless communication NEMA (N), Zhaga (Z) |
| Constant lumen output | CLO (C) |

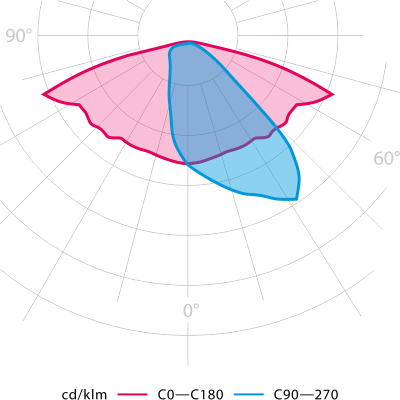

Light parameters
| Optical system | roads (Mxx), roads (Lxx), directional (Pxx) area (Uxx), pedastrian crossing (ZLx/ZPx)cannot ZP06 / ZL06 combined optics (Kxx), AMBER modul (Nxx), AMBER optics (ALxx) BACK Light mask (BM2) |
| Light distribution | direct |
| Colour rendering index | Ra > 70, Ra > 80 |
| Colour temperature | 2,700 K / 3,000 K / 4,000 K / 5,000 K |
| Service life | > 100,000 hrs. (L90B10) |

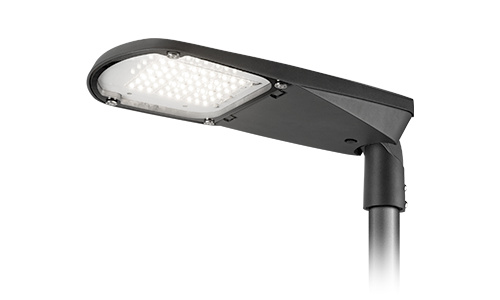

Construction
| Luminaire body | aluminum cast |
| Colour | RAL 7015 |
| Surface type | matte |
| Luminaire cover | tempered glass |
Safety
| Protection class | I, II |
| Maximum ambient temperature | -40 / +50 °C |
| Ingress protection | IP 66 |
| Impact protection | IK 08 |

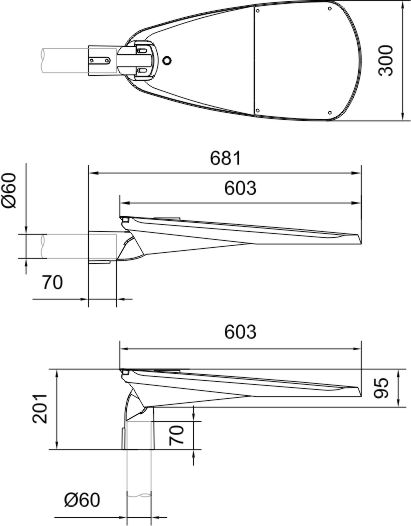

Mounting
| Method | pole or boom mounted (48–60 mm); 60–76 mm (on request) adjustable joint ± 10° |
| Recommended height | max. up to 12 m |

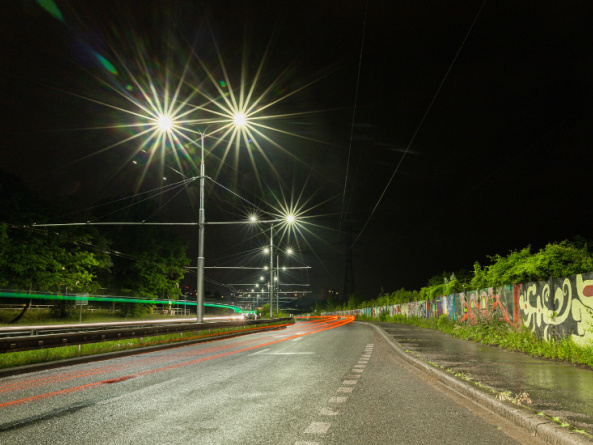

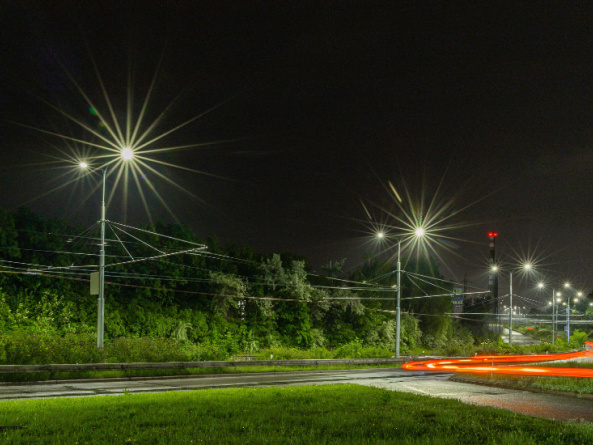

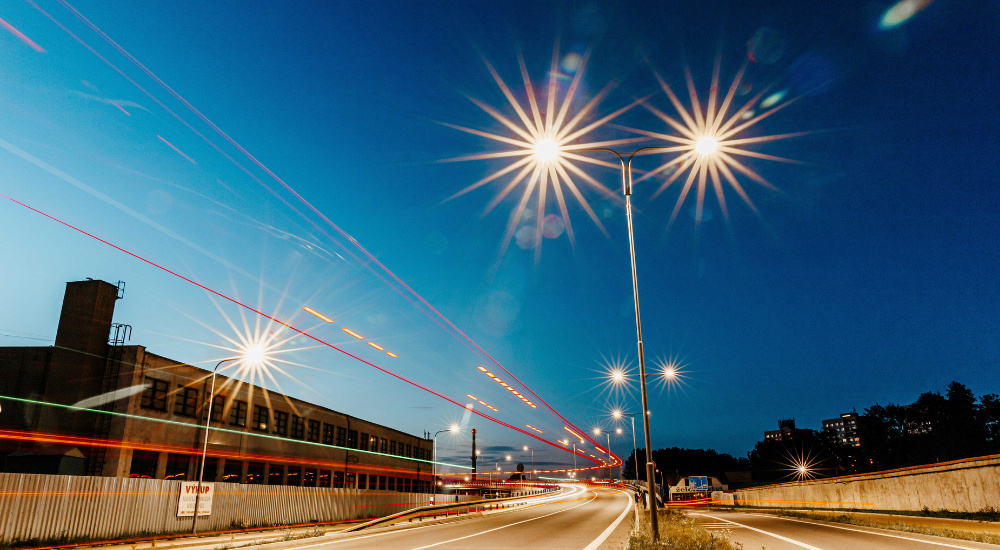

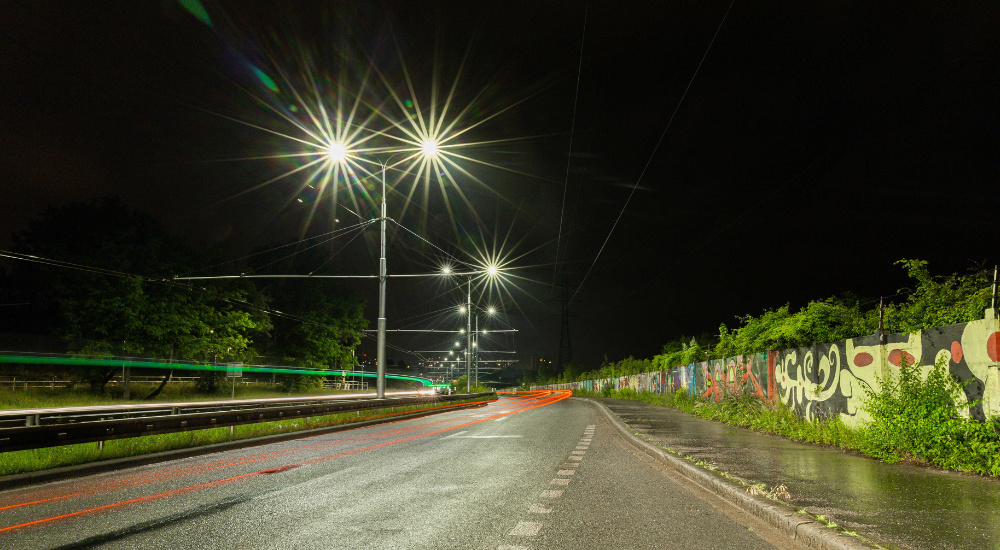

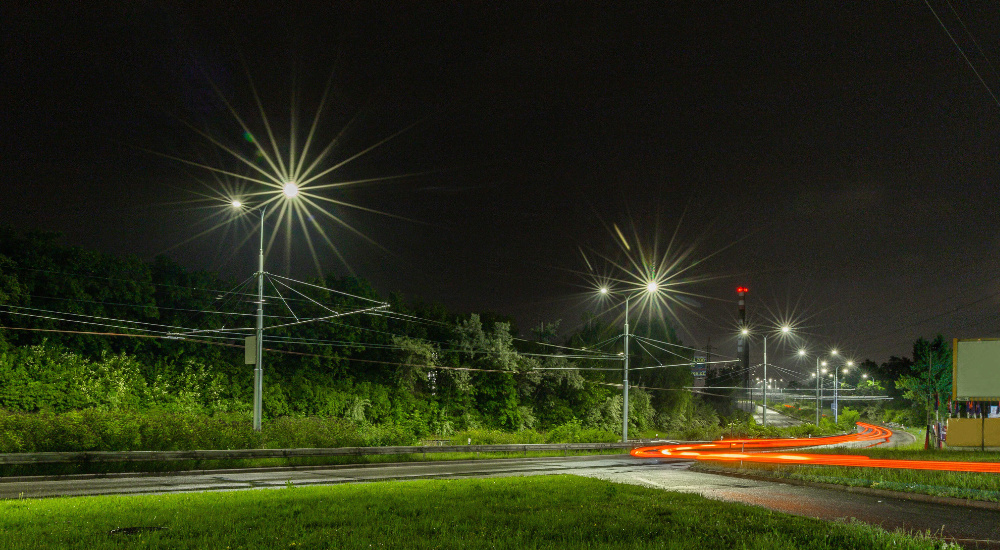

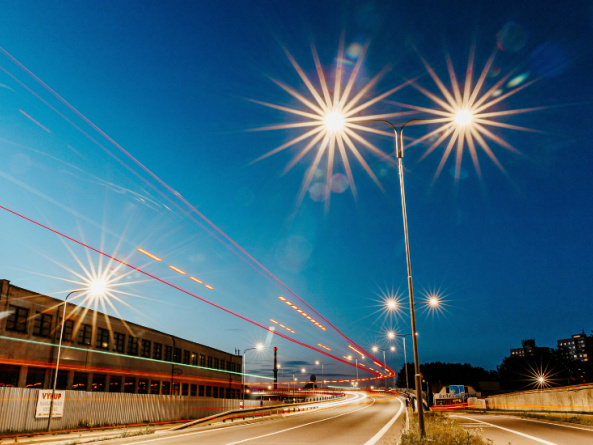

| Use | bike path, outdoor areas, pedestrian zones, sidewalks, road classes I. and II. |
