Specifications
Electrical parameters
| Light source | LED |
| Power voltage | AC 230 V / 50 Hz |
| Connection method | terminal block |
| Ballast part | electronic driver |
| Possibility of regulation | non-dimmable (not labeled) |
| Emergency module | NO |
Light parameters
| Optical system | building lighting |

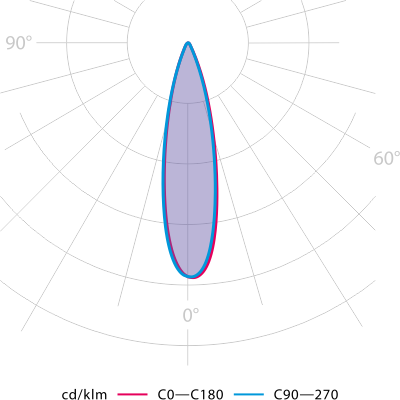

| Light distribution | direct |
| Colour rendering index | Ra > 70 |
| Colour temperature | 4,000 K |
| Service life | > 60,000 hrs. (L70B50) |

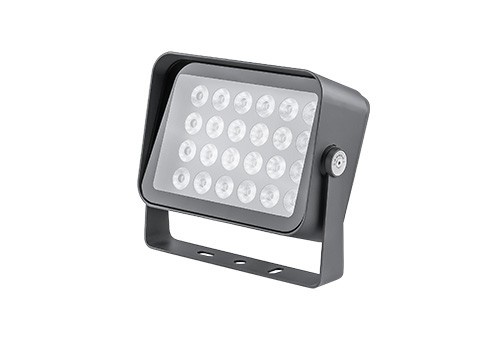

Construction
| Luminaire body | aluminum cast |
| Colour | RAL 7016 |
| Surface type | matte |
| Luminaire cover | safety glass (not labeled), IK 09 |
Safety
| Protection class | I |
| Maximum ambient temperature | -30 / +40 °C |
| Protection of the luminaire's electrical part | IP 66 |
| Protection of the luminaire's optical part | IP 66 |
| Mounting on normally flammable surfaces | YES |

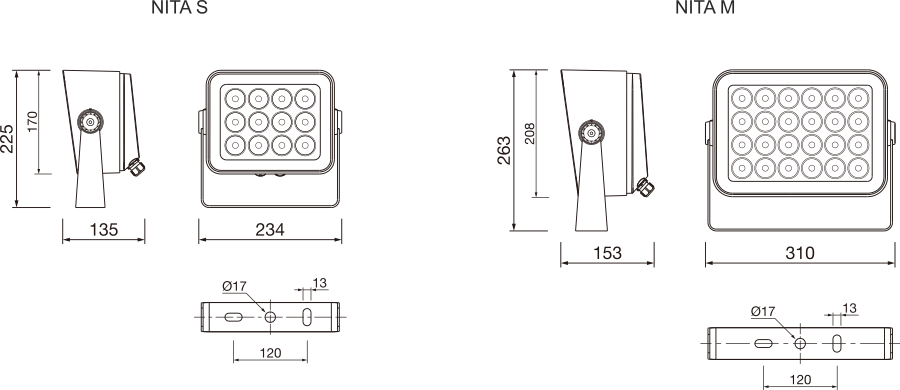

Mounting
| Method | by mounting on a caliper (part of the luminaire) |
| Recommended height | from 6 to 15 m |
Accessories
| Clips | NO |

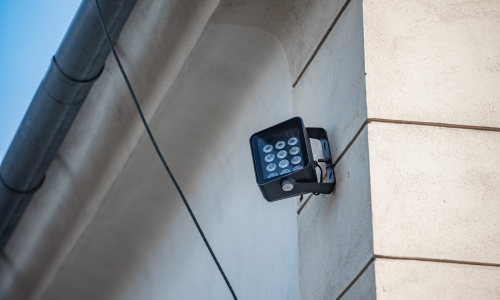

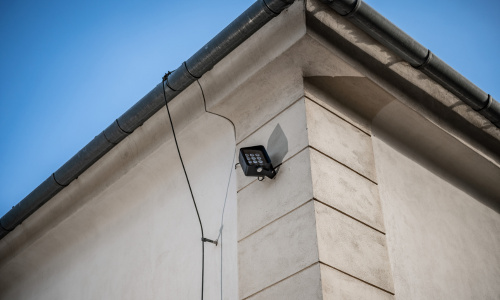

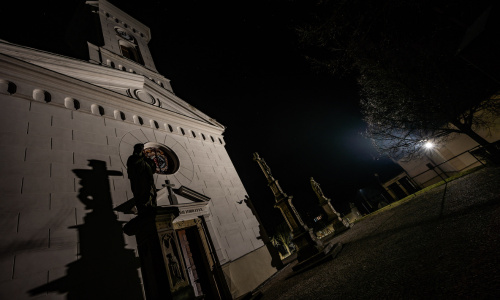

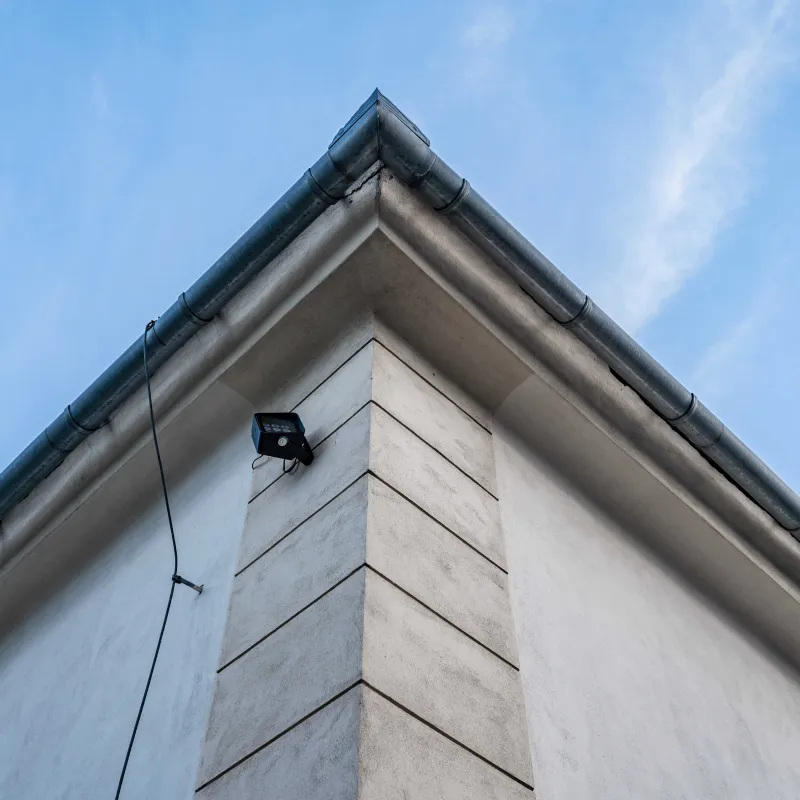

| Use | building lighting |
