Electrical parameters
| Light source | LED |
| Power voltage | AC 220–240 V / 50–60 Hz |
| Connection method | terminal box IP65 |
| Ballast part | electronic driver |

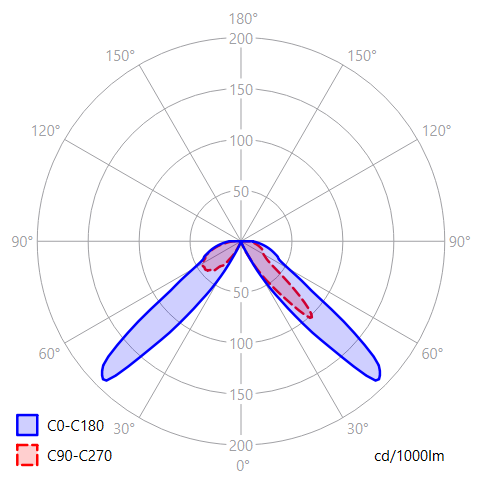

Light parameters
| Optical system | symmetrical (YS), asymmetrical (YA) |
| Light distribution | direct |
| Colour rendering index | Ra > 80 |
| Colour temperature | 2,200 K / 2,700 K |
| Service life | > 100,000 hrs. (L90B10) |
Construction
| Luminaire body | aluminum cast |

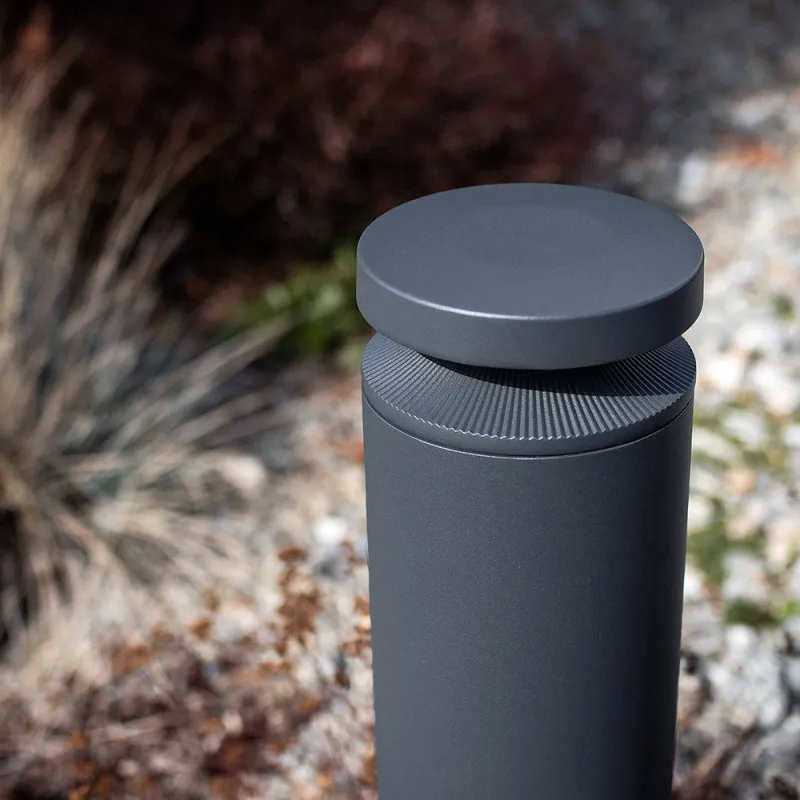

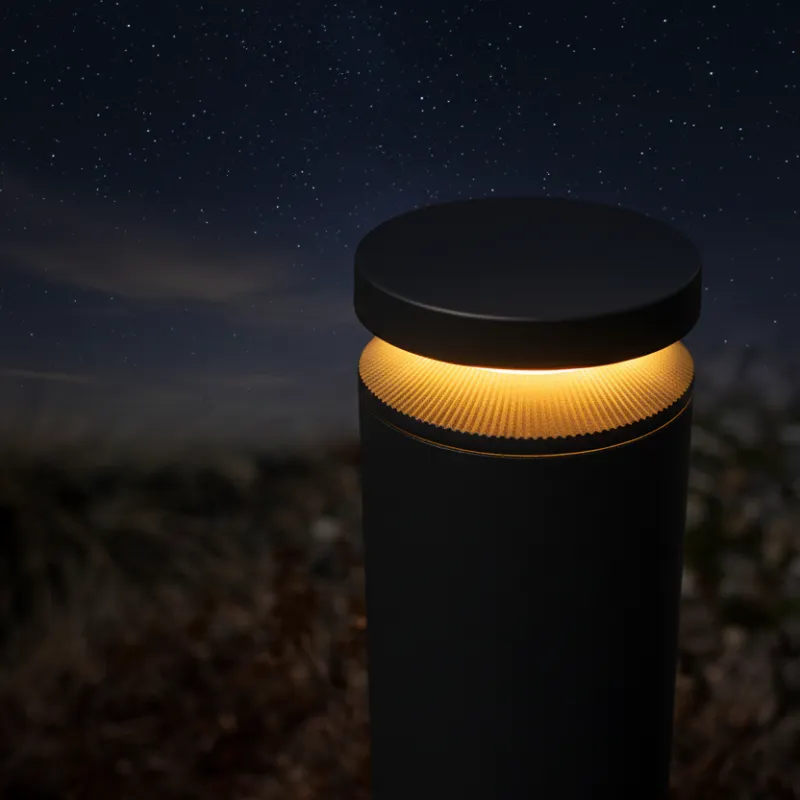

| Colour | RAL 7015 |
| Surface type | matte |
| Luminaire cover | PC |
Safety
| Protection class | I |
| Maximum ambient temperature | -25 / +40 °C |
| Impact protection | IP 65 |
| Ingress protection | IP 66 |
Mounting
| Method | ground installation |
Accessories
| Use | city parks, parking spaces, square, sidewalks, road classe S |
